产品概念
Trance 29冲破障碍勇往直前，全新的车架搭载Advanced碳纤科技与可调节的几何，助你拥有顺滑的操控体验和林道中绝佳的速度效率。
产品特色
丰富可调节
全新的FLIPCHIP设计允许您更改头管和座管角度，以及五通高度，以适应不同的赛道条件和个人骑行风格。
自信操控
更大的29寸轮径经过优化，可在崎岖地形上更加具有平衡性和稳定性，为您提供更佳的通过能力，并为您提供在快速、崎岖的下坡路中骑行的信心。
专为林道设计
轻巧的碳纤车架具有更长的前伸量和更陡的座管角度，便于进行激烈的越野骑行，并提高了攀爬能力。Maestro后避震具有120mm的后轮行程并130mm的前叉。车架集成存储空间在下管中用于携带工具，零食或其他必需品。
| FRAME/车架 | |
|---|---|
| 车架 | Advanced-Grade Composite front and rear triangles, 120mm Maestro suspension, flip chip - Maestro, 12x148mm thru-axle, integrated downtube storage |
| 前叉 | Fox 34 Float Rhythm, 130mm, GRIP damper, Boost 15x110 Kabolt, 44mm offset, custom tuned for Giant |
| 尺寸 | S, M, L, XL |
| 颜色 | Airglow/Black/Chrome |
| Components/组件 | |
|---|---|
| 车把 | Giant Contact SL TR35, 780x35mm |
| 车首竖杆 | Giant Contact SL 35 S:40mm, M:40mm, L:50mm, XL:50mm |
| 座垫 | Giant Romero SL |
| 座垫杆 | TranzX travel-adjustable dropper, remote S: 120-150mm travel / 30.9 x 459mm M: 140-170mm travel / 30.9 x 499mm |
| Drivetrain/传动系统 | |
|---|---|
| 变速把手 | Shimano SLX SL-M7100, 1x12 |
| 前变速器 | N/A |
| 后变速器 | Shimano SLX RD-M7100 |
| 刹车 | Shimano Deore BR-M6120, hydraulic, Shimano RT-56 rotors [F]180mm, [R]180mm |
| 飞轮 | Shimano SLX, 10x51 |
| 大齿盘 | Shimano MT512-1, 30t, 55mm chainline S:165mm, M:170mm, L:170mm, XL:170mm |
| 链条 | KMC X-12 |
| Wheels/轮组 | |
|---|---|
| 轮圈 | Giant TRX 2 29 Carbon WheelSystem, 30mm inner width |
| 花鼓 | Front : Giant MTB alloy, 6-bolt, [R] Giant MTB alloy, 3-pawl driver, 6-bolt |
| 辐条 | Sapim |
| 轮胎 | [F] Maxxis Minion DHF 29x2.5 WT, 3C MaxxTerra, EXO, TR [R] Maxxis Aggressor 29x2.5, EXO, TR, tubeless |
| Other/其它 | |
|---|---|
| 其他 | tubeless prepared, 2.6" max tire size, 34t max chainring size |

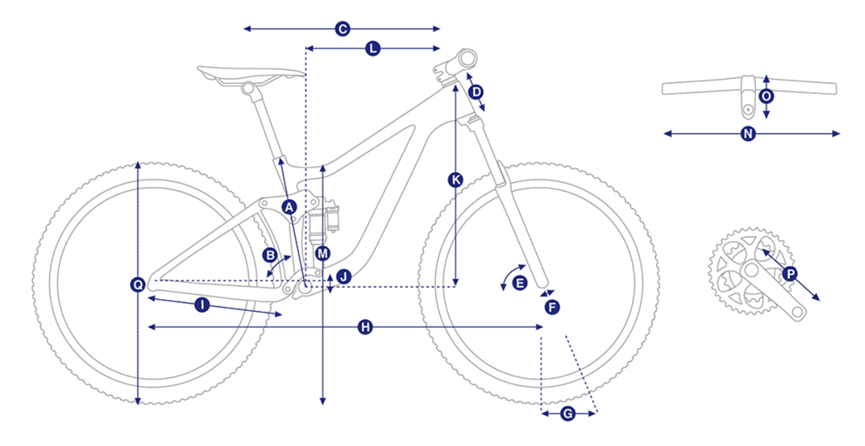

Trance Advanced Pro 29 (F130/R120) | S-low | S-high | M-low | M-high | L-low | L-high | |
A | Seat tube length | 420 | 420 | 430 | 430 | 465 | 465 |
B | Seat tube angle (Degrees) | 77.20 | 78.00 | 76.30 | 77.00 | 76.30 | 77.00 |
C | Top tube length | 561 | 559 | 599 | 597 | 626 | 624 |
D | Head tube length | 100 | 100 | 110 | 110 | 120 | 120 |
E | Head tube angle (Degrees) | 65.40 | 66.20 | 65.50 | 66.20 | 65.50 | 66.20 |
F | Fork rake | 44 | 44 | 44 | 44 | 44 | 44 |
G | Trail | 126 | 120 | 126 | 120 | 126 | 120 |
H | Wheelbase | 1166 | 1165 | 1195 | 1194 | 1124 | 1123 |
I | Chain stay length | 439 | 437 | 439 | 437 | 439 | 437 |
J | Bottom bracket drop | 45 | 35 | 45 | 35 | 45 | 35 |
K | Stack | 610 | 604 | 619 | 613 | 628 | 622 |
L | Reach | 422 | 431 | 447 | 456 | 472 | 480 |
M | Stand over height | 729 | 737 | 723 | 732 | 746 | 755 |
N | Handlebar width | 780 | 780 | 780 | 780 | 780 | 780 |
O | Stem length | 40 | 40 | 40 | 40 | 50 | 50 |
P | Crank length | 165.0 | 165.0 | 170.0 | 170.0 | 170.0 | 170.0 |
Q | Wheel size | 29" | 29" | 29" | 29" | 29" | 29" |
