| FRAME/车架 | |
|---|---|
| 车架 | Advanced-Grade Composite, disc |
| 前叉 | Advanced-Grade Composite, full-composite OverDrive steerer, disc |
| 颜色 | 冷夜黑，梦幻白，渐变灰白 |
| Components/组件 | |
|---|---|
| 车把 | Giant Contact |
| 车首竖杆 | Giant Contact |
| 座垫 | Giant Approach |
| 座垫杆 | Giant Variant, composite, -5/+15mm offset |
| Drivetrain/传动系统 | |
|---|---|
| 变速系统 | 2×12速 |
| 变速把手 | Shimano 105 Di2 |
| 前变速器 | Shimano 105 Di2 |
| 后变速器 | Shimano 105 Di2 |
| 刹车 | Shimano 105 Di2 hydraulic, Giant MPH rotors [F]160mm, [R]140mm |
| 飞轮 | Shimano 105, 12-speed, 11x34 |
| 大齿盘 | Shimano |
| 链条 | KMC X12 |
| 中轴 | Shimano, press fit |
| Wheels/轮组 | |
|---|---|
| 轮胎 | Giant Course 1, tubeless, 700x25c (28mm), folding |
| 轮圈 | Giant P-R2 Disc wheelset, alloy |
| 花鼓 | Giant alloy, 12mm thru-axle |
| 辐条 | Sapim |
| Other/其它 | |
|---|---|
| 其他 | tubeless prepared, 32mm max tire size |

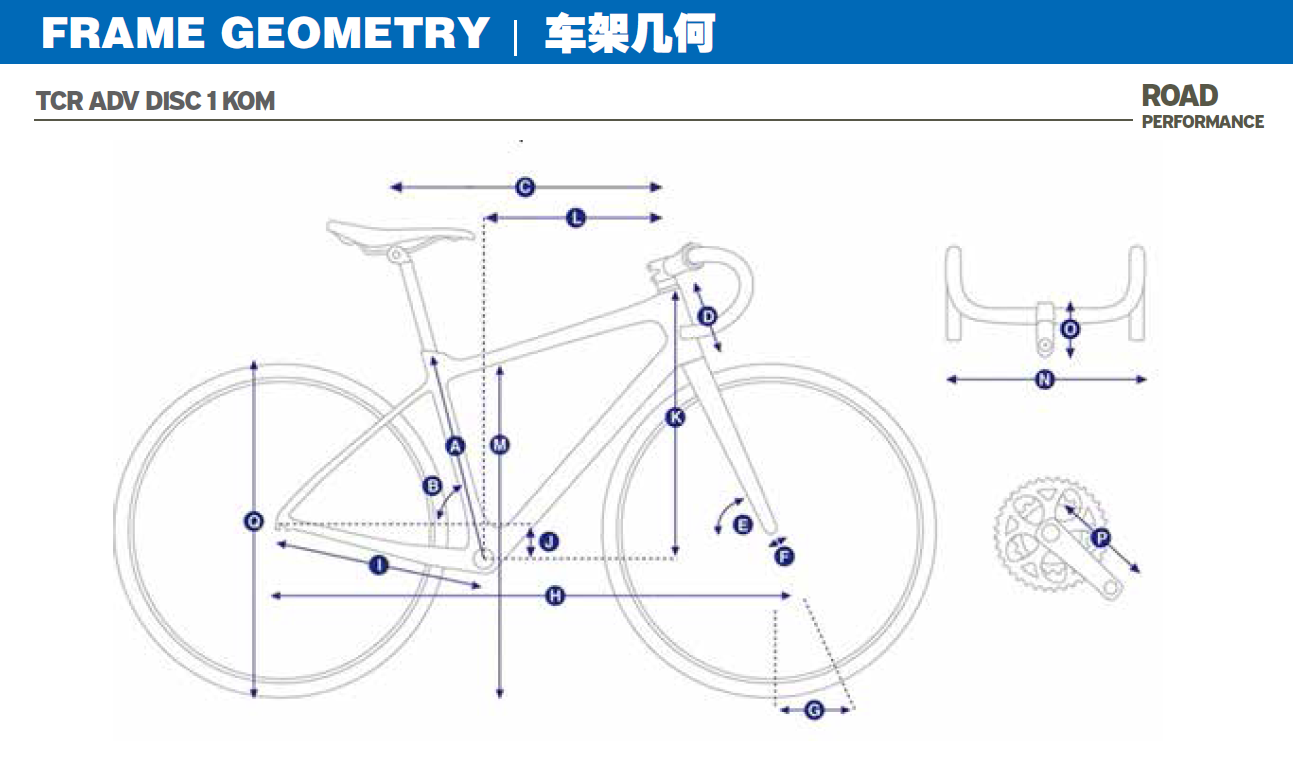

| TCR Advanced Disc | XXS | XS | S | M | ML | L | XL | |
| A | Seat tube length | 425 | 445 | 470 | 500 | 530 | 560 | |
| B | Seat tube angle (Degrees) | 74.50 | 74.00 | 73.50 | 73.00 | 73.00 | 72.50 | |
| C | Top tube length | 520 | 535 | 550 | 565 | 580 | 600 | |
| D | Head tube length | 120 | 130 | 145 | 165 | 185 | 200 | |
| E | Head tube angle (Degrees) | 71.00 | 72.25 | 73.00 | 73.00 | 73.00 | 73.00 | |
| F | Fork rake | 45 | 45 | 45 | 45 | 45 | 45 | |
| G | Trail | 72 | 64 | 59 | 59 | 59 | 59 | |
| H | Wheelbase | 976 | 977 | 980 | 991 | 1006 | 1020 | |
| I | Chain stay length | 405 | 405 | 405 | 405 | 405 | 405 | |
| J | Bottom bracket drop | 72 | 69.5 | 69.5 | 67 | 67 | 67 | |
| K | Stack | 517 | 528 | 545 | 562 | 581 | 596 | |
| L | Reach | 376 | 383 | 388 | 393 | 402 | 412 | |
| M | Stand over height | 706 | 725 | 747 | 773 | 800 | 816 | |
| N | Handlebar width | 400 | 400 | 420 | 420 | 440 | 440 | |
| O | Stem length | 80 | 90 | 100 | 110 | 110 | 120 | |
| P | Crank length | 170.0 | 170.0 | 172.5 | 172.5 | 175.0 | 175.0 | |
| Q | Wheel size | 700C | 700C | 700C | 700C | 700C | 700C | |
