竞赛悬挂
Maestro后避震和170mm行程前叉是在Enduro世界系列赛中开发和测试的。直装后减震器具有更长的行程和更平滑的手感，先进的锻造复合材料上连杆不仅提高了刚性，同时降低了车架重量。
渐进式耐力几何
车架组具有耐力赛几何，因此您可以自信地面对激进的下坡和弯道。 合适的头管/座管角度和前叉偏移量，让你自信的操控车首，保持高速时的稳定
29寸带来信心和控制
29 英寸轮径适合更加崎岖的耐力赛地形，在您骑行爬升路线中保持平衡和稳定，并有信心在快速、技术性的下坡过程中自在穿行。
| FRAME/车架 | |
|---|---|
| 车架 | Advanced-Grade Composite front and rear triangles, 146mm Maestro suspension, 12x148mm thru-axle |
| 前叉 | RockShox ZEB Select, 170mm, Charger RC, 15x110 Maxle Stealth, 44mm offset, custom tuned for Giant |
| 尺寸 | S, M, L, XL |
| 颜色 | Panther / Phantom Green |
| Components/组件 | |
|---|---|
| 车把 | Giant Contact SLR TR35, composite, 800x35mm, 20mm rise |
| 车首竖杆 | Giant Contact SL 35 S:40mm, M:40mm, L:40mm, XL:40mm |
| 座垫 | Giant Romero SL |
| 座垫杆 | TranzX travel-adjustable dropper, remote S: 120-150mm travel / 30.9 x 459mm M: 140-170mm travel / 30.9 x 499mm L: 170-200mm travel / 30.9 x 525mm XL: 170-200mm travel / 30.9 x 525mm |
| Drivetrain/传动系统 | |
|---|---|
| 变速把手 | SRAM NX Eagle, 1x12 |
| 前变速器 | N/A |
| 后变速器 | SRAM NX Eagle |
| 刹车 | Shimano BR-MT520, hydraulic, Shimano RT-66 rotors [F]203mm, [R]203mm |
| 飞轮 | SRAM NX Eagle, 11x50 |
| 大齿盘 | TruVativ Descendent 6k, DUB, 32t S:165mm, M:170mm, L:170mm, XL:170mm |
| 链条 | SRAM NX Eagle |
| 中轴 | SRAM DUB, press fit |
| Wheels/轮组 | |
|---|---|
| 轮圈 | Giant AM 29, alloy |
| 花鼓 | Shimano, sealed |
| 辐条 | Sapim |
| 轮胎 | [F] Maxxis Assegai 29x2.5 WT, 3C MaxxTerra, EXO+, TR [R] Maxxis Minion DHR II 29x2.4 WT, 3C MaxxTerra , EXO+, TR tubeless |
| Other/其它 | |
|---|---|
| 其他 | tubeless prepared, 2.5" max tire size, 36t max chainring size, MRP AMG CS chain guide, 3M tailgate protector |

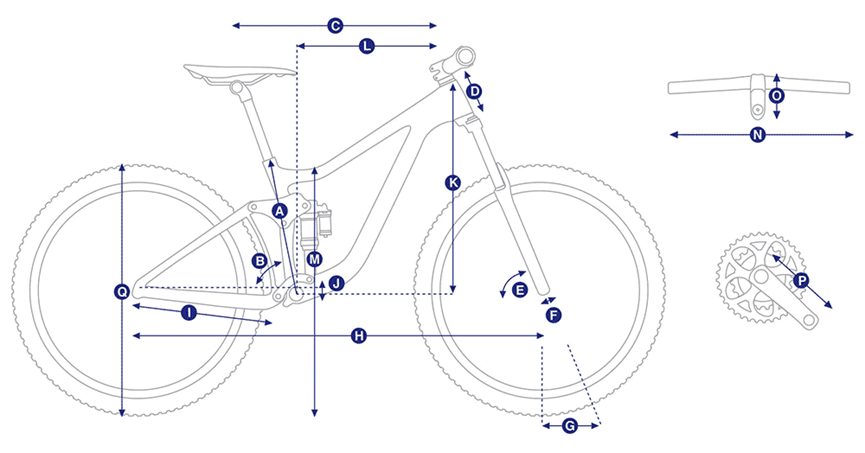

Reign Advanced Pro 29 (F170/R146) | S | M | L | |
A | Seattube length | 431 | 431 | 464 |
B | Seattube angle (degrees) | 76.36 | 76.36 | 76.36 |
C | Toptube length | 574 | 601 | 640 |
D | Headtube length | 100 | 100 | 110 |
E | Headtube angle (degrees) | 64.56 | 64.56 | 64.56 |
F | Fork rake | 44 | 44 | 44 |
G | Trail | 133 | 133 | 133 |
H | Wheelbase | 1191 | 1220 | 1262 |
I | Chainstay length | 439 | 439 | 439 |
J | Bottom bracket drop | 27 | 27 | 27 |
K | Stack | 622 | 622 | 631 |
L | Reach | 423 | 451 | 488 |
M | Standover height | 757 | 759 | 781 |
N | Handlebar width | 800 | 800 | 800 |
O | Stem length | 40 | 40 | 40 |
P | Crank length | 165.0 | 170.0 | 170.0 |
Q | Wheel size | 29" | 29" | 29" |
