Aero efficiency空气力学效率
利用流体力学（CFD）技术、动态风洞测试结果以及铁人三项比赛设计，在比赛中配置与展现优异空气力学效率。
Integrated design一体化设计
通过AeroVault系统可在骑乘时饮水和储存，到刹车到座舱系统，所有的东西都是设计成一个体系。
Perfect fit舒适设计
精细的车架几何设计以及可调控的特性，旨在满足多样化比赛的竞赛需求。
| FRAME/车架 | |
|---|---|
| 车架 | Advanced-Grade Composite |
| 前叉 | Advanced-Grade Composite, alloy OverDrive steerer |
| 颜色 | Black Diamond / Iris |
| Components/组件 | |
|---|---|
| 车把 | Giant Trinity Composite base bar with ski bend |
| 车首竖杆 | Giant Trinity alloy, high/low |
| 座垫 | ISM PS1.0 |
| 座垫杆 | Giant Trinity Composite |
| Drivetrain/传动系统 | |
|---|---|
| 变速把手 | SRAM eTap Blips |
| 前变速器 | SRAM Force eTap AXS |
| 后变速器 | SRAM Force eTap AXS |
| 刹车 | Giant SpeedControl SL |
| 飞轮 | SRAM Force, 12-speed, 10x28 |
| 大齿盘 | SRAM Force D1 DUB, 35/48 with Quarq DZero power meter XS:165mm, S:170mm, M:172.5mm, L:175mm |
| Wheels/轮组 | |
|---|---|
| 轮圈 | Giant P-A2 wheelset |
| 花鼓 | Giant P-A2 wheelset |
| 辐条 | Giant P-A2 wheelset |
| 轮胎 | Giant AC 1, tubeless,700x25c (25mm), folding |
| Other/其它 | |
|---|---|
| 其他 | tubeless prepared, 25mm max tire size |

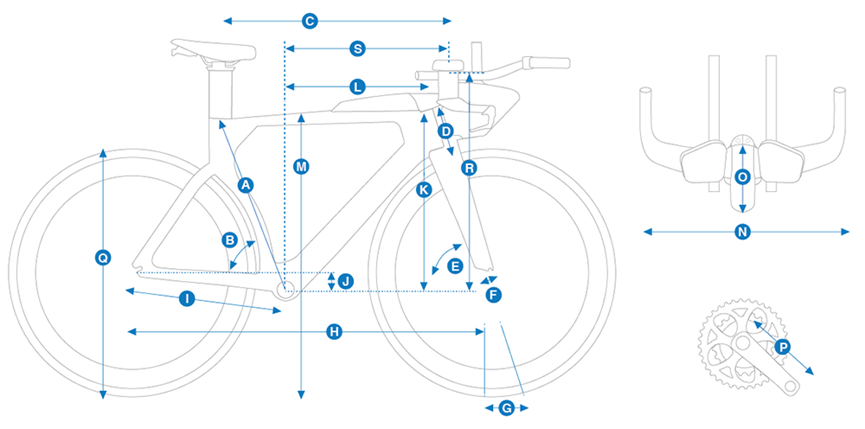

Trinity Advanced Pro | XS | S | M | L | |
A | Seattube length | 460 | 490 | 515 | 545 |
B | Seattube angle (degrees) | 77.00 | 77.00 | 77.00 | 77.00 |
C | Toptube length | 509 | 528 | 541 | 554 |
D | Headtube length | 80 | 110 | 140 | 170 |
E | Headtube angle (degrees) | 73.00 | 73.00 | 73.00 | 73.00 |
F | Fork rake | 40 | 40 | 40 | 40 |
G | Trail | 61 | 61 | 61 | 61 |
H | Wheelbase | 967 | 988 | 1003 | 1018 |
I | Chainstay length | 405 | 405 | 405 | 405 |
J | Bottom bracket drop | 65 | 65 | 65 | 65 |
K | Stack | 482 | 510 | 539 | 568 |
L | Reach | 398 | 410 | 417 | 423 |
M | Standover height | 742 | 767 | 790 | 836 |
N | Handlebar width | 400 | 400 | 400 | 400 |
O | Stem length | 80 | 80 | 80 | 80 |
P | Crank length | 165.0 | 170.0 | 172.5 | 175.0 |
Q | Wheel size | 700C | 700C | 700C | 700C |
